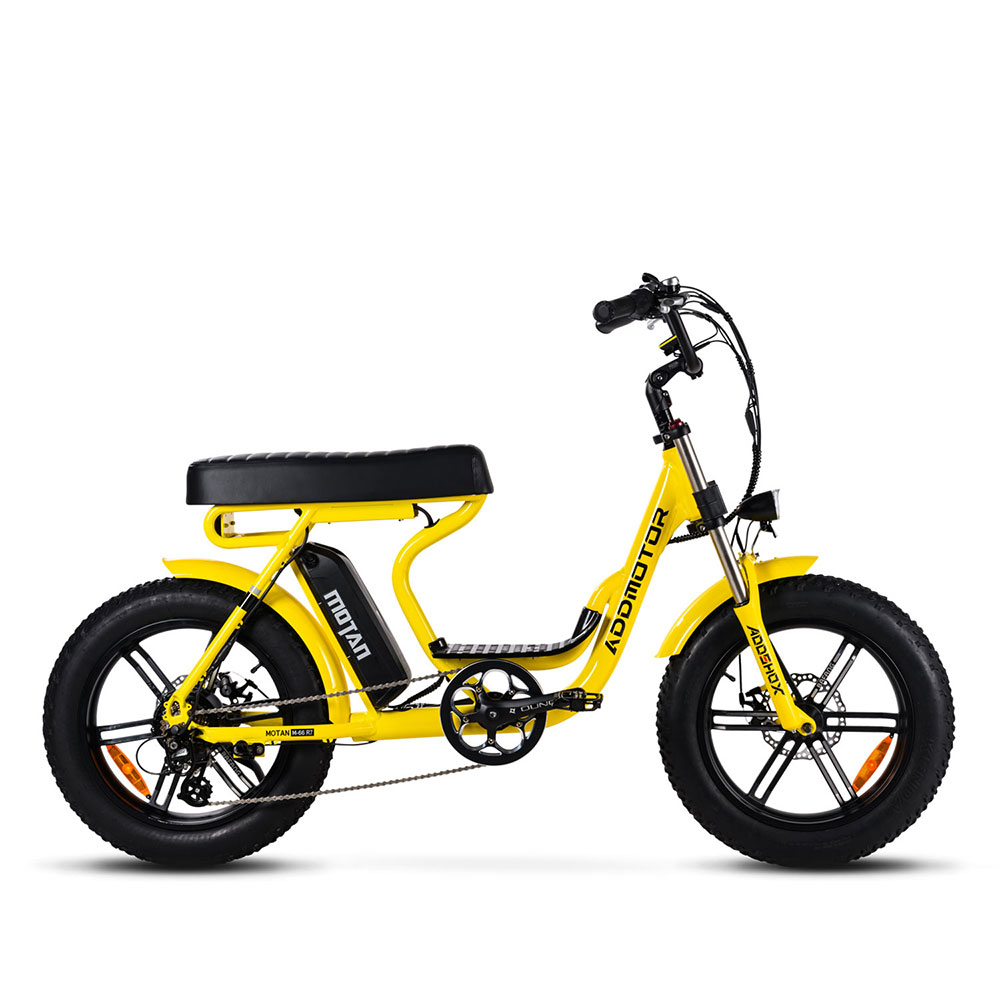

ADDMOTOR MOTAN M-66 R7 Step-Thru Electric Fat Bike Mini Moped Motorbike 48V*17.5 Battery
Regular price
$2,099.00

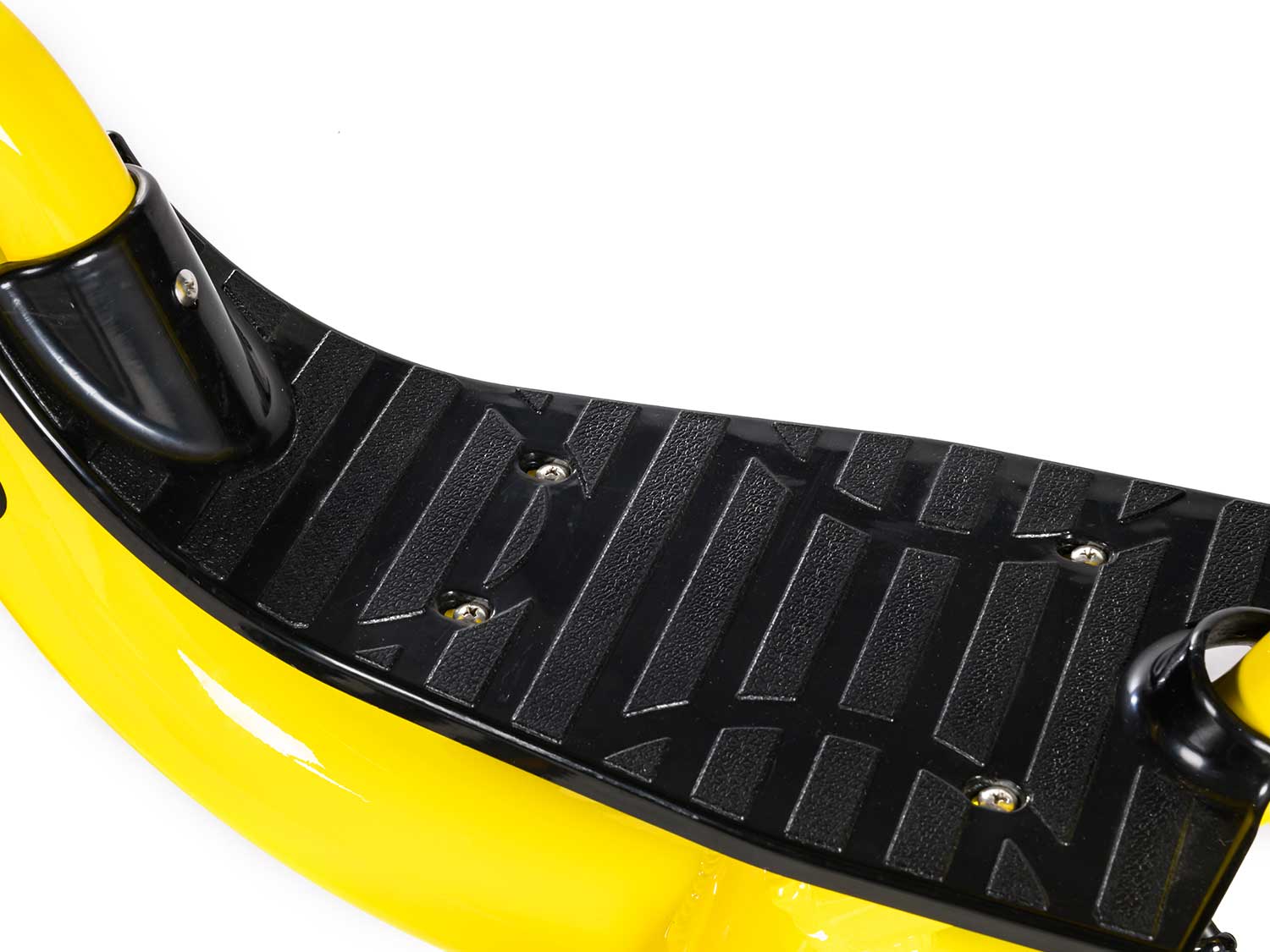

Front Foot Platform
A small platform pedal that offers you multiple uses such as a moped, placing a box package, using as a footboard, or whatever you can think of.
Technical specs
Electronics

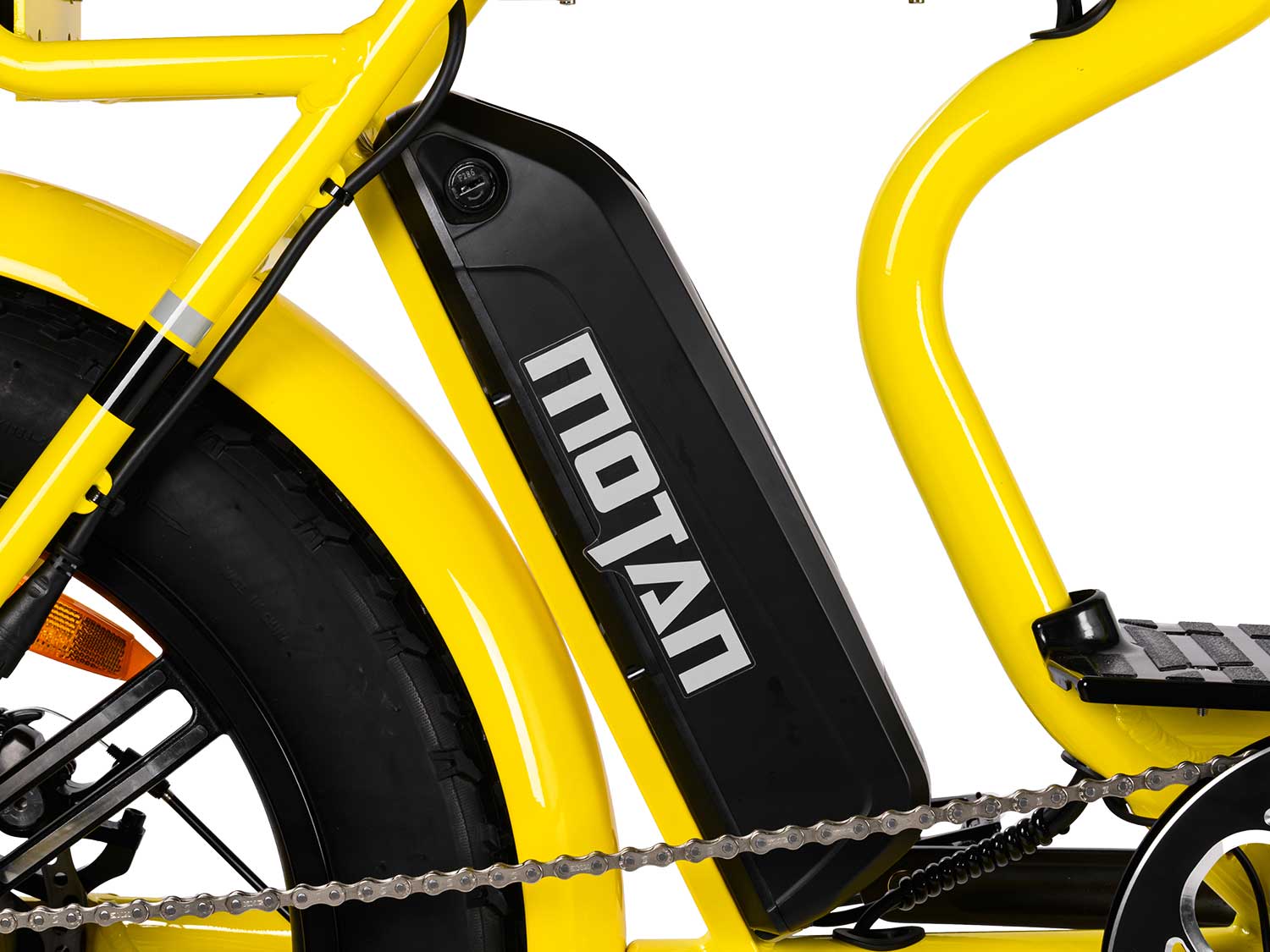

Battery:
Panasonic 48V*14Ah Lithium Battery Cells, Charging Time 5-6 Hours Rated For 800 Charge Cycles

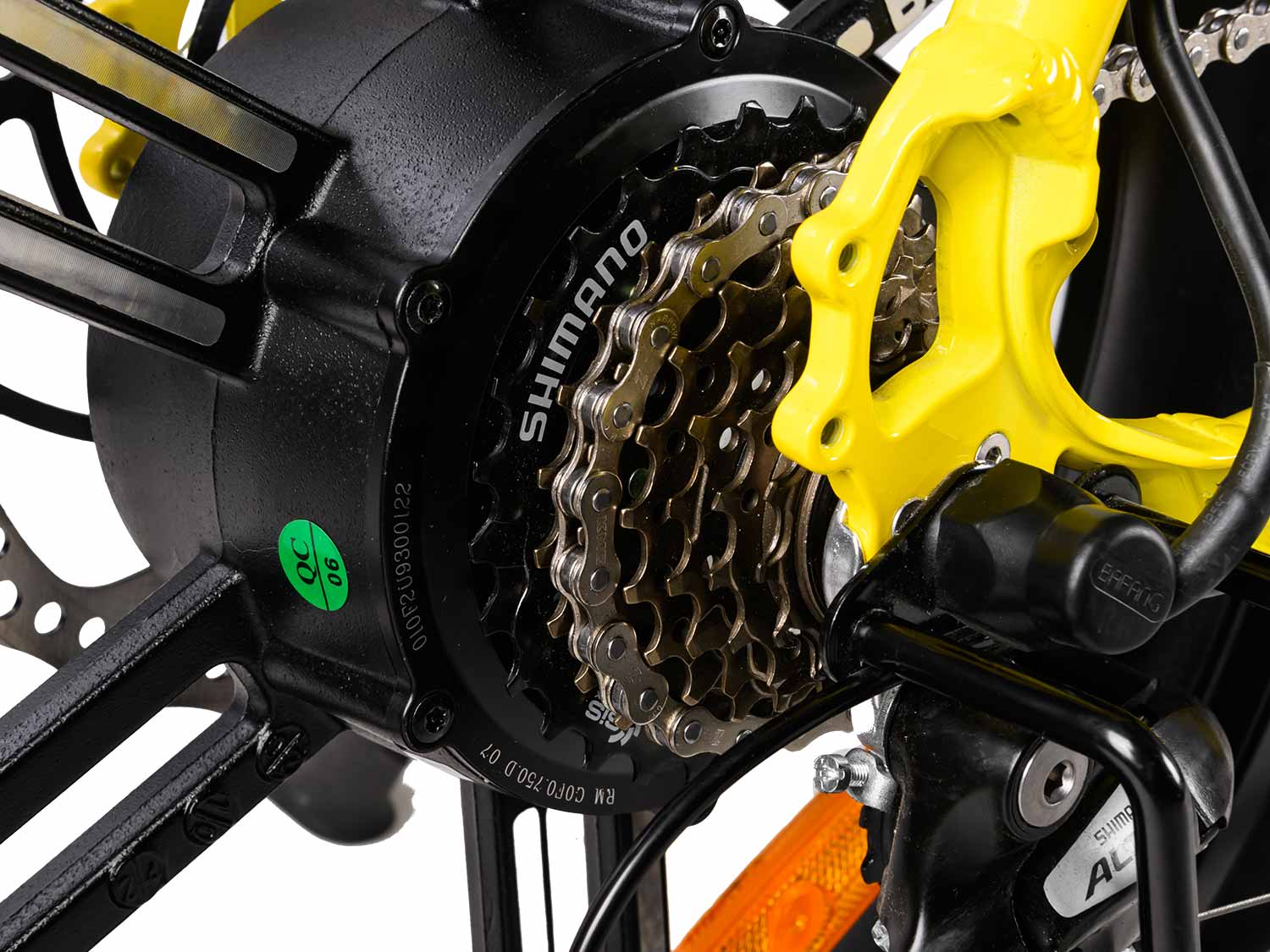

Motor:
Bafang 48V*750W Integrated Wheel Motor (Rear-Mounted Geared Hub), 80N·M Torque

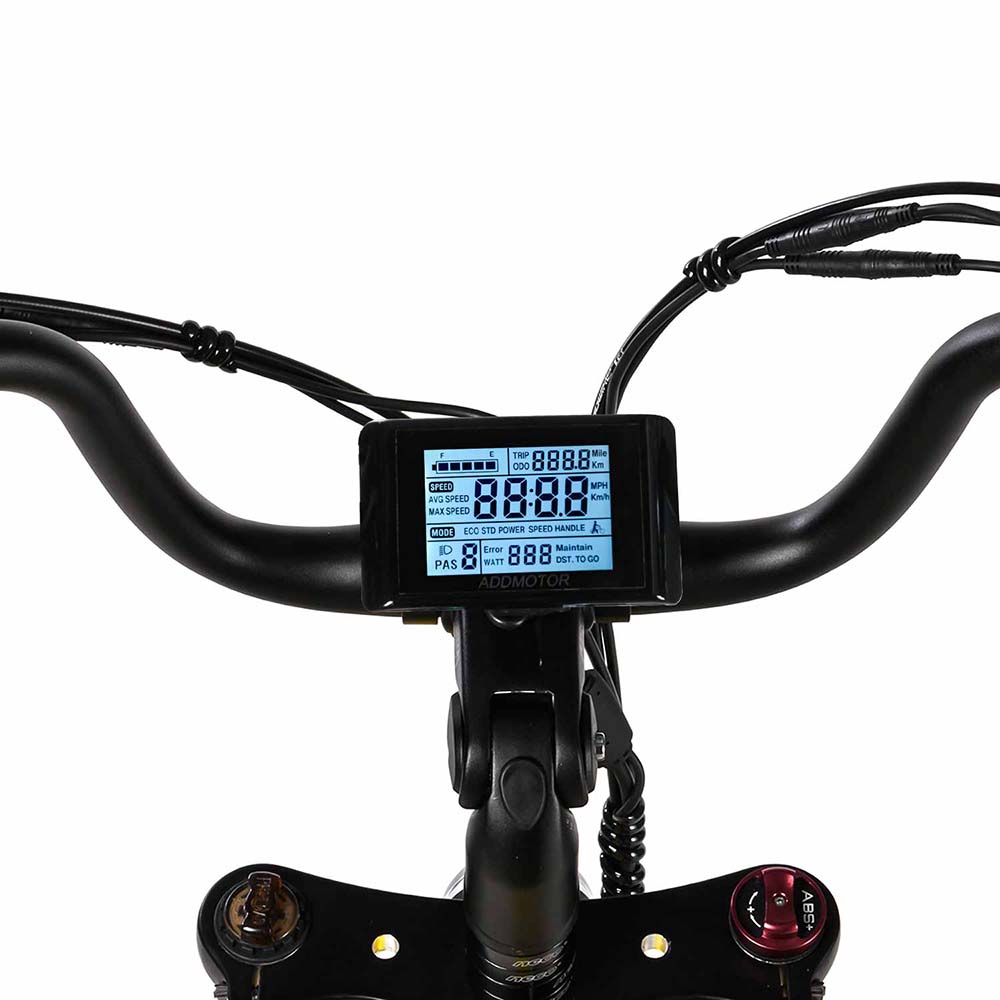

Display:
Addmotor 5 Inch LCD Backlit Control Panel with Independent Button Pad
Throttle:
Variable Speed Control - 1/2 Twist Throttle with Power-Cut Switch
Controller:
Addmotor 25A Controller

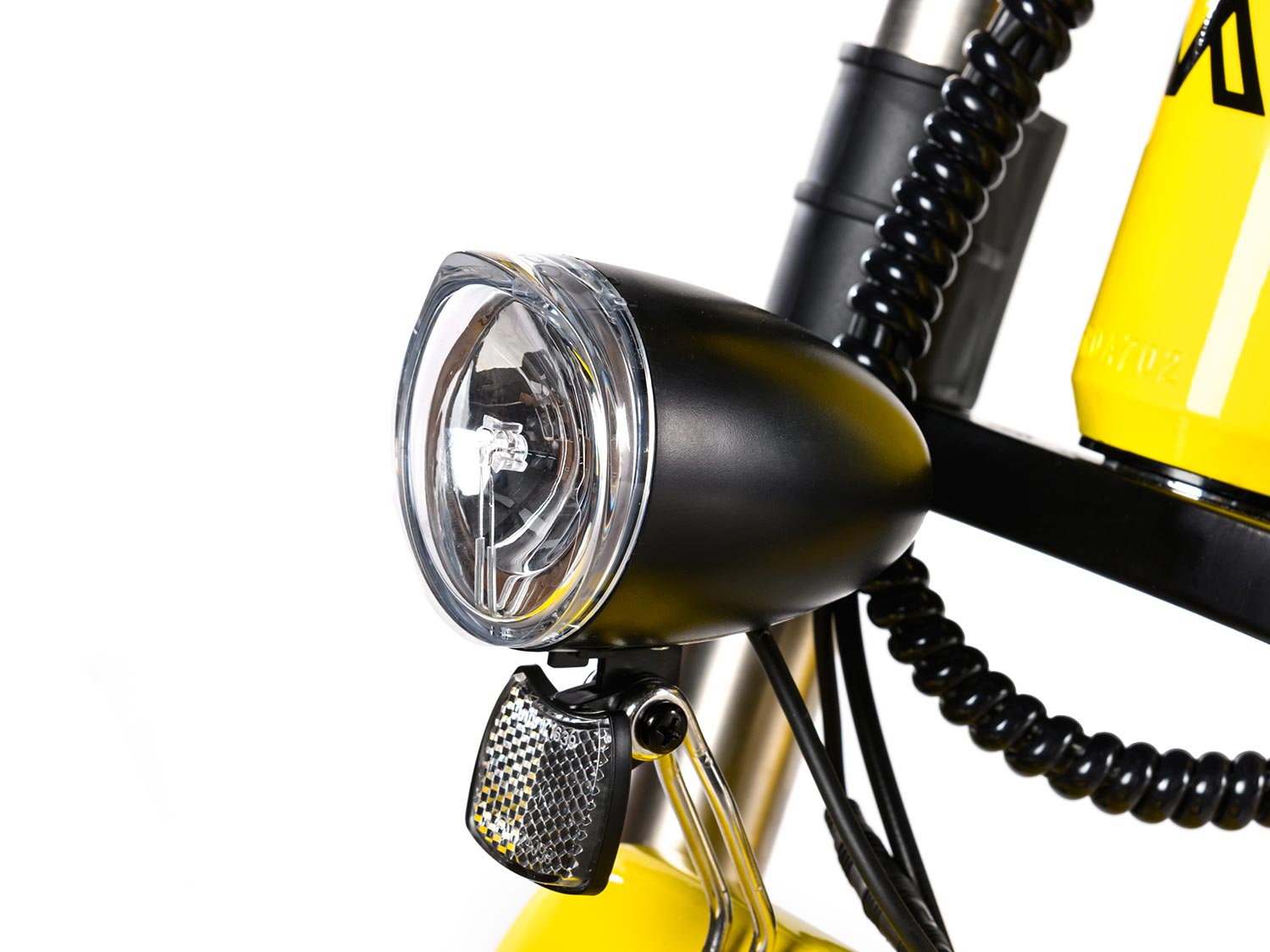

Headlight:
Powered by Main Battery Pack and Controlled by Display
Integrated Wiring:
Water-Resistant Connectors and Wiring Harness
Range:
45-55 Miles with PAS 1
Components
Frame:
6061 Aluminum Alloy Step-Thru Frame
Front Fork:
Addshox Spring Suspension Fork, Triple Clamp, 32.5mm Steel Stanchions, 80 mm Travel, Preload Adjust, Boost 135 mm Hub Spacing, 9 mm Skewer with Bolts
Brakes:
Tektro Mechanical EL555-RT / EL550-RS
Brake Rotors:
Tektro Aries Mechanical Disc with 180 mm Rotors, Tektro Four-Finger Levers with Rubberized Edge and Motor Inhibitors
Gearing:
7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 Cassette 14-28 Tooth
Shifter:
Shimano SIS Index Right Thumb Shifter

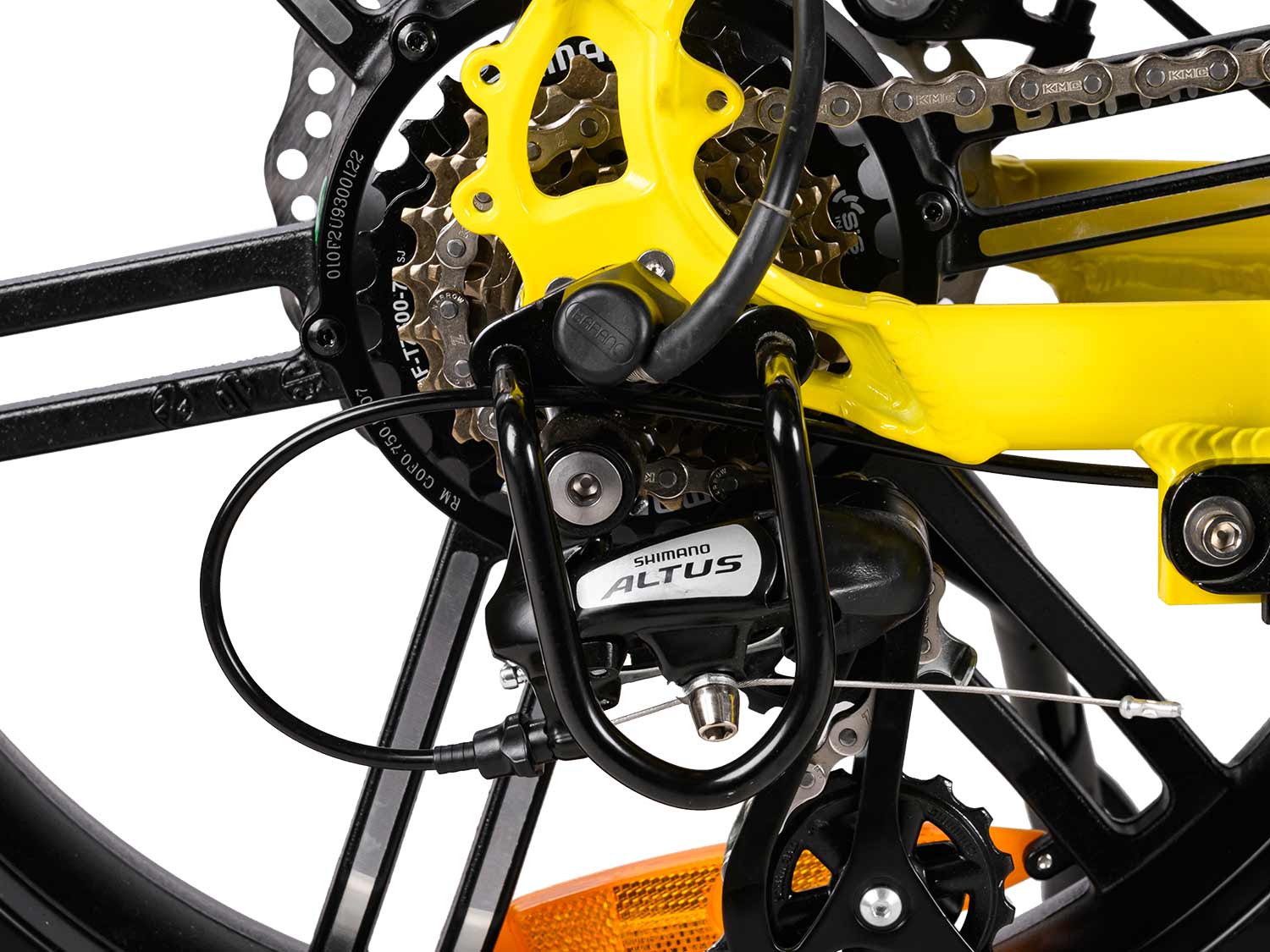

Derailleur:
Shimano 7 Speeds / ALTUS M310
Cranks:
Ounce, Alloy, 170 mm Length, 42 Tooth Chainring with Double-Sided Alloy Chain Guard
Pedals:
Wellgo Alloy Platform with Pins
Headset:
Neco, Threadless Internal Cups, Straight 1-1/8”
Stem:
Promax, Alloy, Adjustable Angle (-10º to 100º), Alloy, 110 mm Length, Four 10 mm Spacers
Handlebar:
Alloy, High-Rise, Swept Back
Grips:
Ergonomic, Stitched Faux Leather, Black

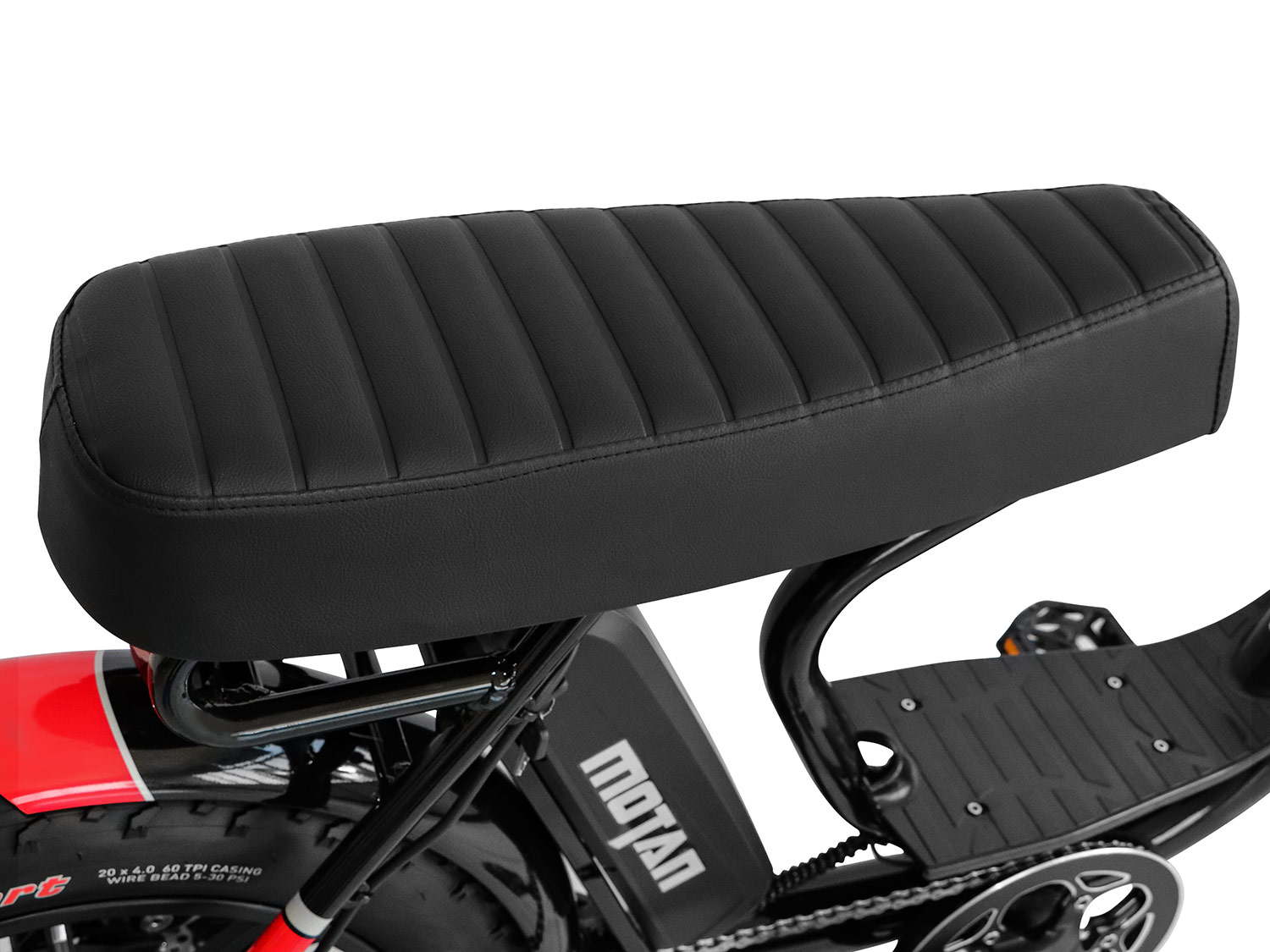

Saddle:
Banana Seat (23” x 8.5”), Faux Leather, Black
Rims:
Cast Alloy, Double Walled
Spokes:
6 Cast Alloy Arms with Reflectors
Tires:
Kenda Krusade Sport, 20” x 4”, 5-30 PSI, 0.4-2.1 BAR
Fenders:
Alloy Front and Rear Fenders Included
Kickstand:
Adjustable Length Rear Mounted
Bell:
Integrated Bell on Left Brake Lever Cluster

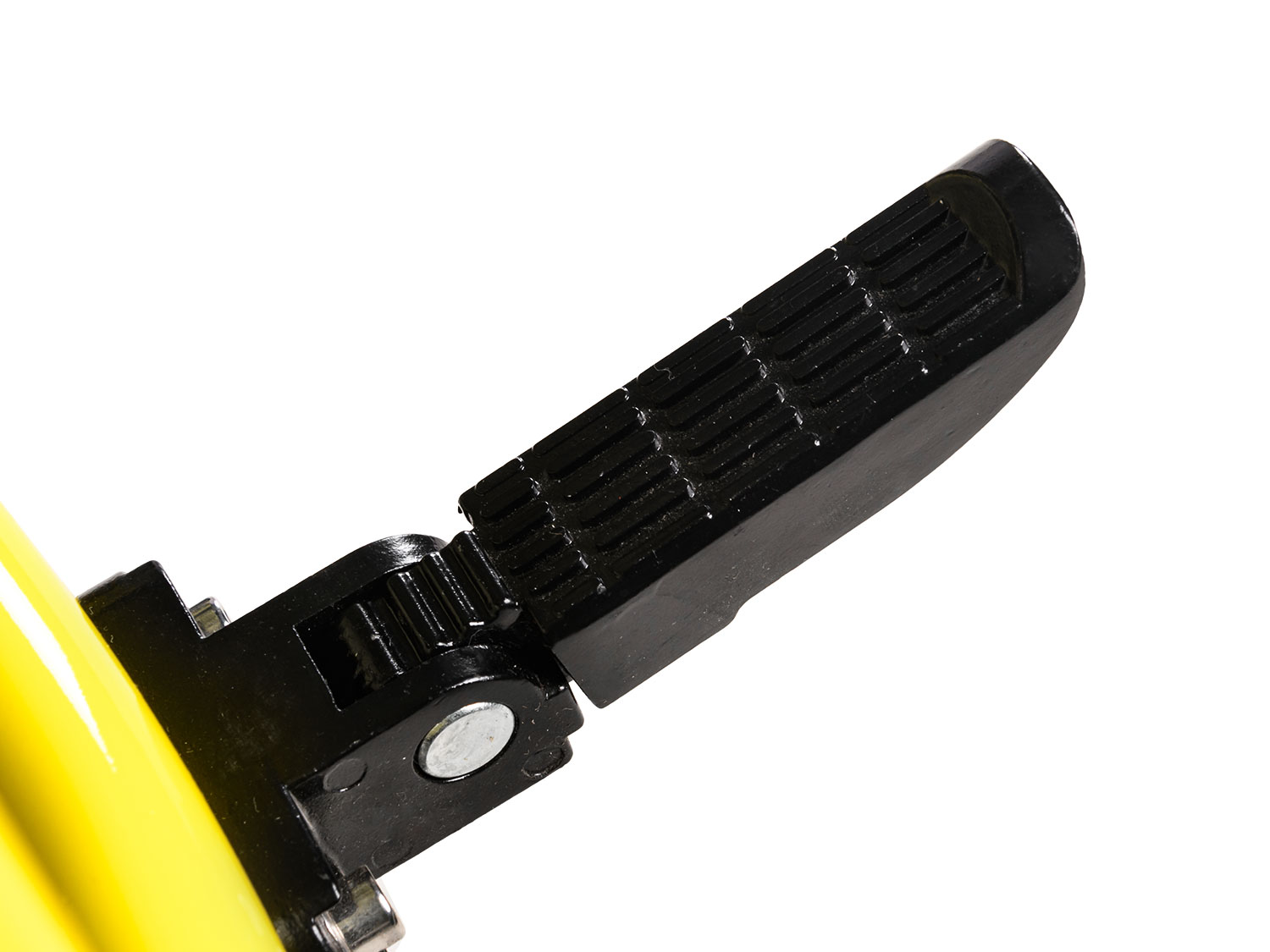

Footpegs:
Alloy Passenger Foot Pegs Included

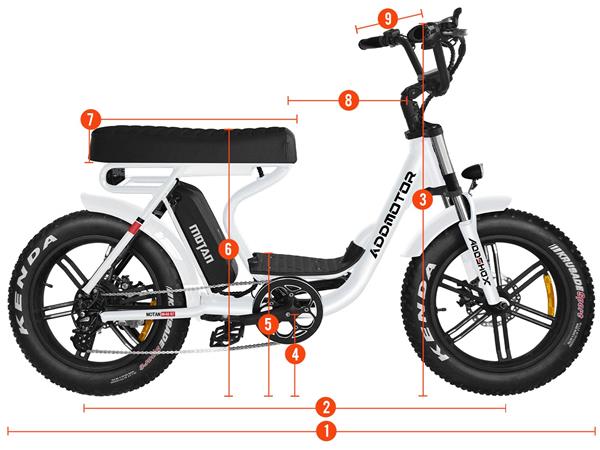

Measurement
Benefit from the adjustable stem and low-step-through frame, the bike fit for a wide range rider whose height between 5'2'' and 6'2''.
①Total Length
72''
②Wheelbase
48''
③Min/MaxHandlebar Height
42.5'' / 48''
④Bottom Bracket Height
12.4''
⑤Stand Over
17''
⑥Seat Height
32.5''
⑦Saddle Size
23.5'' x 8.5''
⑧Reach
13.5''
⑨Handlebar Width
30''
