Motan Etrike Series Upgrade
All Motan series e-trikes have upgraded with the latest EB 2.0 system and most importantly, the battery capacity has expanded from 17.5Ah to 20Ah. Additionally, each mechanical component is more aesthetically pleasing, comfortable, and of high quality.
Built To Comfort Your Every Ride
The upgraded Grandtan M-340 model is a full-featured fat tire e-trike, including a wide, butterfly-like, eco-friendly wooden footrest to fully support your feet, an adjustable handlebar, an ergonomic saddle with backrest, and 4-inch fat tires with great shock absorption capacity. Compared to the old one, it improves riding comfort by at least 30%
4.0 Inch Kenda Fat Tires
4-inch Kenda fat tires, with layers of inner tube protector, high-volume inner tube and anti-slip cover tire, boost riding comfort and have better rollover capability & durability. Grandtan M-340 fat tire e-trike is ready for most types of terrains, including sandy beaches.
750 W Front-Mounted Motor
A 750W front-mounted motor makes the e-trike much more stable and helps maintain a better balanced state with fast acceleration. Additionally, it has a better heat dissipation performance to improve the efficiency of electrical energy utilization.
Max Motor Torque: 80Nm
Peak Motor Watts: 1,000W

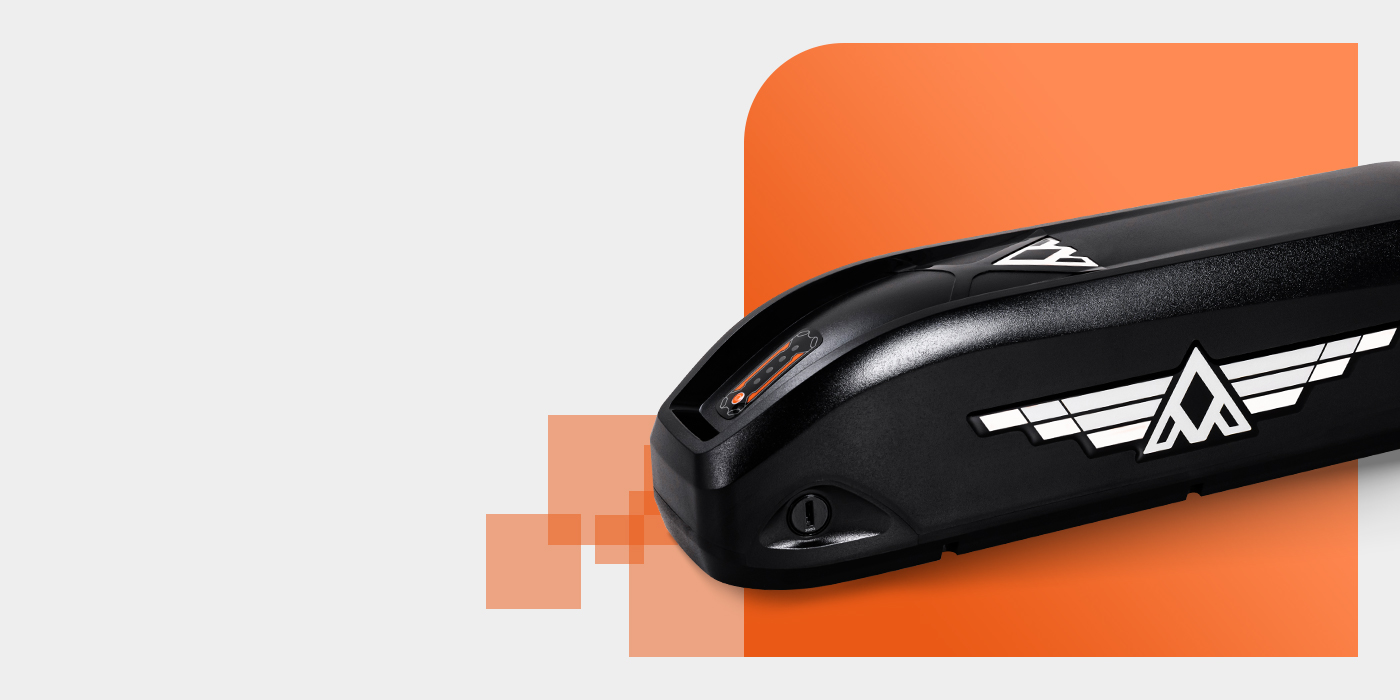

20.0Ah High Capacity Samsung Battery
Grandtan M-340 fat tire e-trike is adapted to the EB 2.0 battery, the world's first 48V*20Ah UL-certified battery. It ensures an estimated max range of 85 miles with PAS 1 mode (8 MPH) and a safer and more reliable riding experience.
Charging Time: 9-10 Hrs
Per Charge: 40-85 Miles
Up To 85+ Miles Riding Range
The most notable 2023 electric trike model M-340 combines all of Addmotor's electric tricycle advantages, providing you with the most impressive experience.
Addmotor 5 Inch LCD Display
Provides riding information of battery usage, mileage, speed, lighting usage, PAS level, current motor wattage, etc. This makes your ride safer and easier to control.
Integrated Headlight & Taillight
Grandtan M-340 model’s headlight & taillight are powered by the main battery pack and controlled by the uneven buttons, contributing to an integrated control system. Together, the lights have a 360° side view, ensuring you riding safety at night.
40-Lumen Headlight
200m Visual Range
Adjustable Light Brightness
IPX5 Waterproof Grade
EB 2.0 LIGHT SYSTEM
EB 2.0 lighting system comes with a multi-functional taillight, delivering the driving, danger, flashing, braking, and left & right turning signals. Please note that the braking light will automatically be activated when you apply the brakes.
Tektro Mechanical Disc Brake With Motor Cutoff Sensor
Grandtan M-340 e-trike is equipped with a full-wheel Tektro mechanical disc brake system with an automatic motor cutoff sensor. It produces strong friction on the rotors when applying the brake levers, allowing you to slow or stop quickly.
180mm F / 2*180mm Rear Brake Rotors
EB 2.0 LIGHT SYSTEM
EB 2.0 lighting system comes with a multi-functional taillight, delivering the driving, danger, flashing, braking, and left & right turning signals. Please note that the braking light will automatically be activated when you apply the brakes.
Rear: Electric Taillight & Braking Light SOLO by Spanninga
Rear: Removable, Aluminum, 100lbs Carrying Capacity
Redefine Your Lifestyle
With a new long-range battery and an energy-efficient motor, the 2023 version of Grandtan M-340 e-trike extends its maximum range by approximately 73% to help expand your adventure. The thrill of long rides is more accessible than ever!
Built To Comfort Your Every Ride
The upgraded Grandtan M-340 model is a full-featured fat tire e-trike, including a wide, butterfly-like, eco-friendly wooden footrest to fully support your feet, an adjustable handlebar, an ergonomic saddle with backrest, and 4-inch fat tires with great shock absorption capacity. Compared to the old one, it improves riding comfort by at least 30%.
4.0 Inch Kenda Fat Tires
4-inch Kenda fat tires, with layers of inner tube protector, high-volume inner tube and anti-slip cover tire, boost riding comfort and have better rollover capability & durability. Grandtan M-340 fat tire e-trike is ready for most types of terrains, including sandy beaches.
750W Front-Mounted Motor
A 750W front-mounted motor makes the e-trike much more stable and helps maintain a better balanced state with fast acceleration. Additionally, it has a better heat dissipation performance to improve the efficiency of electrical energy utilization.
Max Motor Torque: 80Nm
Peak Motor Watts: 1,000W
20.0Ah High Capacity Samsung Battery
Grandtan M-340 fat tire e-trike is adapted to the EB 2.0 battery, the world's first 48V*20Ah UL-certified battery. It ensures an estimated max range of 85 miles with PAS 1 mode (8 MPH) and a safer and more reliable riding experience.
Charging Time: 9-10 Hrs
Per Charge: 40-85 Miles
Up To 85+ Miles Riding Range
The most notable 2023 electric trike model M-340 combines all of Addmotor's electric tricycle advantages, providing you with the most impressive experience.
Addmotor 5 Inch LCD Display
Provides riding information of battery usage, mileage, speed, lighting usage, PAS level, current motor wattage, etc. This makes your ride safer and easier to control.
Integrated Headlight & Taillight
Grandtan M-340 model’s headlight & taillight are powered by the main battery pack and controlled by the uneven buttons, contributing to an integrated control system. Together, the lights have a 360° side view, ensuring you riding safety at night.
40-Lumen Headlight
200m Visual Range
Adjustable Light Brightness
IPX5 Waterproof Grade
EB 2.0 LIGHT SYSTEM
EB 2.0 lighting system comes with a multi-functional taillight, delivering the driving, danger, flashing, braking, and left & right turning signals. Please note that the braking light will automatically be activated when you apply the brakes.
Tektro Mechanical Disc Brake With Motor Cutoff Sensor
Grandtan M-340 e-trike is equipped with a full-wheel Tektro mechanical disc brake system with an automatic motor cutoff sensor. It produces strong friction on the rotors when applying the brake levers, allowing you to slow or stop quickly.
180mm F / 2*180mm Rear Brake Rotors
Footrest wood board built with eco and care in mind
Ease and relax your feet on the board while riding with throttle mode or stopping for a traffic light.
Step through frame with swan-like bionic design
Swan style design makes the Grandtan more stylish, good-looking, and easier to get off and on.
Extra wide saddle plus adjustable backrest
The padded saddle stablizes your ride,and the backrest height can be customized to maximize your comfort.
Oil spring fork with lockout & 80mm of travel
Helps ensure a smoother and more effective shock absorption when rolling over the tough terrains.
EB 2.0 chip-based controller
Upgraded 25A controller comes with simplified circuit design to lower short-circuiting & overheating risks.
Rotatable U-shaped Handlebar
An rotatable stem allows you to adjust to the right angle for a comfortable upright position.
Curved fenders keep dirt & sand off
Addmotor one of a kind fenders can protect your body and e-trike from mud, sand and more.
Dual Rear Brake Rotors
The dual brakes system ensures safe braking at high speeds, meanwhile triggering the automatic motor cutoff and rear brake light.
20.5"X16"X9.5" waterproof storage bag with refective liner stripe
Grandtan comes with a waterproof bag freebie to store your item and safeguard your nocturnal ride.
Suits riders in the height range of 5'2"-6 '4"
Max load capacity is 450 lbs
Total Length 77"
Total Width 33.5"
Wheelbase 49"
Maximum handlebar Height 48"
Minimum handlebar Height 43"
Standover Height 17.5"
Seat Tube 19"
Minimum Seat Height 32.5"
Maximum Seat Height 39"
Reach 13"
Rear Basket 48L, 20.5" x 16" x 9.5"
Battery 9.5LBS/4.3KG
Shipping Weight 140LBS/63.25KG
